CoilHeater: helical cardridges

Conformable

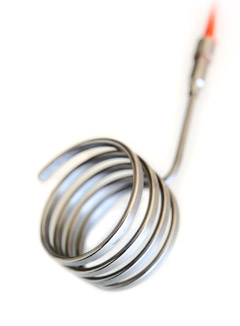

The heating elements CoilHeater are specially designed for heating cylinders and nozzles. They are cardridges of a very small diameter but of great calorific power, which evenly distribute their heat 360º.
The heating wire is of the best quality on the market, with a thin outer layer of Mg0 and covered by a stainless steel sheath, all of which goes through a compacting process to achieve a longer life and reach a temperature of 950 ºC.
Optionally, the heater can be hermetically sealed to prevent the entry of materials, moisture, liquids, etc.
It is recommended for a better performance of the heaters. CoilHeater, the use of Thermocopy.

  • Economic
  • Uniform temperature
  • Diversity of finishings

Stock Prices 2.2 x 4.2

Lenght Heat zone Power W/cm2 2.2 x 4.2 Price(*)
200 mm 135 mm 180 W 5.40 200CH2242 39.61 €
265 mm 200 mm 200 W 5.40 265CH2242 39.61 €
315 mm 250 mm 225 W 5.40 315CH2242 40.85 €
345 mm 280 mm 250 W 5.40 345CH2242 42.09 €
400 mm 335 mm 275 W 5.40 400CH2242 42.09 €
450 mm 385 mm 300 W 5.40 450CH2242 43.33 €
525 mm 460 mm 350 W 5.40 525CH2242 44.56 €
600 mm 535 mm 400 W 5.40 600CH2242 44.56 €
700 mm 635 mm 450 W 5.40 700CH2242 47.04 €
750 mm 685 mm 550 W 5.40 750CH2242 48.28 €
800 mm 735 mm 625 W 5.40 800CH2242 50.75 €
950 mm 885 mm 700 W 5.40 950CH2242 55.7 €
1000 mm 935 mm 750 W 5.40 1000CH2242 59.42 €
1175 mm 1110 mm 850 W 5.40 1175CH2242 65.61 €
1400 mm 1335 mm 1000 W 5.40 1400CH2242 70.56 €
1600 mm 1535 mm 1150 W 5.40 1600CH2242 76.75 €
1800 mm 1735 mm 1200 W 5.40 1800CH2242 80.46 €
2000 mm 1935 mm 1250 W 5.40 2000CH2242 81.7 €

(*) Includes 'J' type thermocouple, fluoropolymer-copper nickel-plated cable and 1000mm fiberglass protection.

More information

Coil-Heaters.com

Technical Data

Heat Intensity Do not exceed 9W/cm2 (recommended)
Power Depending on dimensions
Leakage current (cold) <=0.5mA to 253V AC
Insulation (cold) <=5mΩ. to 500V DC
Dielectric strength 800v. 1/seg
Working temperature 700ºC max.
Lenght tolerance +/-2.5%
Diameter tolerance +/- 0.1
Tolerance for connection cut-off. +/-15 mm
Power tolerance (w) +/-10%
Cold areas Depends on length and diameters 5-15 mm
CoilHeater resistencias industriales

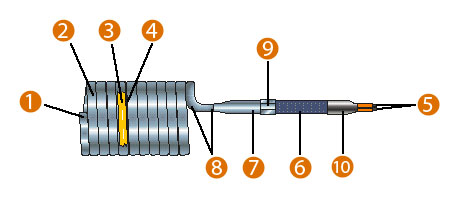

  1. Tig welded base watertight up to a pressure of 60 kg/cm2.
  2. Stainless steel
  3. Óxido de magnesio puro de granulometría controlada.
  4. Heating wire Nickel-Chromium 80/20 melting point 1400ºC.
  5. Conductor cable.
  6. Glass Cover Protection.
  7. Adapter bush.
  8. Inactive part 65mm.
  9. Pressed clamped pipe.
  10. Retractable cover.
Maxiwatt's exclusive construction system, with its electronic system of spiral separation, guarantees the same temperature throughout the perimeter and length of the resistance, obtaining a uniform and long-lasting temperature. We do not use these 4 types of materials: Tantalum, Tin, Gold and Tungsten.
CoilHeater resistencias eléctricas

Utilities

Where heat is required in 360º of a cylinder.

Implementations

  • Extruder nozzles
  • Duct hardening.

Terminations: Orientation of connections

Axial Output Ref. "Helico A"
CoilHeater
Tangential Output Ref. "Helico B"
CoilHeater
Side Output Ref. "Helico C"
CoilHeaterç
Radial Output Ref. "Helico D"
CoilHeater
