Terminations T1:base Termination

Compressed cartridge. Base termination Ref. "T1"
Fully compressed cartridge, with a refractory ceramic paste sealing the entrance. It is the base cartridge. from this cartridge the other modifications are made.

Terminations T2: Finished with soapstone

Compressed cartridge. Steatite finish Ref. "T2"
Cardrige with a ceramic piece (soapstone), which protrudes from a length of 3 to 4 millimeters, depending on the diameter, avoids the crossing of the cable with the tube and gives more consistency to the entry. the diameter of the cartridge, avoids the crossing of the cable with the tube and gives more consistency to the cable entry. of cables.

Terminations T3: Termination with tab

Compressed cartridge. Termination card Ref. "T3"
Cardrige with a ceramic piece (soapstone). Prepared for quick change of cables.

Terminations T4: Metric termination

Compressed cartridge. Metric termination Ref. "T4"
Cardrige with stainless steel metric stud, useful for quick cable replacement.

Terminations T5: Single-pole cable termination

Compressed cartridge. Unipolar termination Ref. "T5"
Cardrige with single-pole fiberglass cable output for low-voltage cartridges.

Terminations T6: Single-pole screw termination

Compressed cartridge. Unipolar termination Ref. "T6"
Cardrige with metric screw output, single-pole with quick cable extraction.

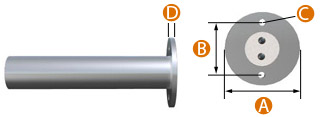

Terminations T7: Termination with plate

Compressed cartridge. Termination With plate Ref. "T7"
Fully compressed and reinforced cartridge, prepared to hold the piece to be heated robustly. Ideal for areas with movements and vibrations.

Diameter mm. and Inch	6,5-1/4"	8-5/16"	10-3/8"	12,5-1/2"	16-5/8"	20-3/4"	25-1"
A mm	18	18	27	27	33	33	41
B mm	13	13	20	20	25,6	25,6	33
C mm	3,2	3,2	3,2	3,2	4,2	4,2	5,2
D mm	1 to 1,2	1 to 1,2	1 to 1,2	1 to 1,5	1 to 1,5	1 to 2	1 to 2

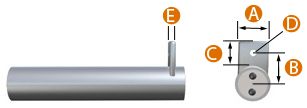

Terminations T7B: Termination with plate

Compressed cartridge. Termination With plate Ref. "T7B"
Fully compressed and reinforced cartridge, prepared to hold the piece to be heated, ideal for areas with movements and vibrations.

Diameter mm. and Inch	6,5-1/4"	8-5/16"	10-3/8"	12,5-1/2"	16-5/8"	20-3/4"
A mm	6,5	8	9,5	10	12	18
B mm	6,5	8,5	9,5	11,25	13,5	16,5
C mm	6,5	9	9	10	11	13
D mm	3,2	4,2	4,2	5,2	5,2	6,2
E mm	2,25	2	2	1,5	2	2

Terminations T8: Termination with Racort

Compressed cartridge. Termination With Racort Ref. "T8"
Totally watertight and reinforced cartridge, prepared for an easy extraction, by means of a thread, of its location in case of dislodging of the same one. Ideal for areas where there are watertight pressures and liquids. The Ref. T8 termination is indicated for heating areas where there are pressures (oil tanks, water, glues, plastics) or deflagrations.

Diameter mm. and Inch	6,5-1/4"	8-5/16"	10-3/8"	12,5-1/2"	16-5/8"	20-3/4"
A mm	10	10	12	12	14	14
B mm	4	4	4	4	4	4
C mm	12	14	17	19	24	27
Thread mm. and Inches	M10 x 1 (1/8'')	M12 x 1 (1/4'')	M14 x 1,5 (1/4'')	M16 x 1,5 (3/8'')	M20 x 1,5 (1/2'')	M26 x 1,5 (3/4'')

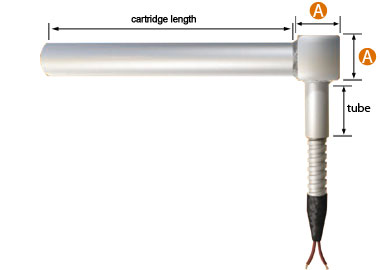

Terminations T9: Termination at 90º.

Compressed cartridge. Termination 90º Ref. "T9"
Completely watertight and reinforced strength, prepared for easy removal from its location with reinforcement that prevents deformation in case of dislodgement. The Ref. T9 termination can be applied in any hostile situation (high temperatures, material waste).

Special Cardriges Casting of Non-Ferrous Metals. Ref: T9 Stock.
Stock of Maxiwatt high density cartridges especially for casting non-ferrous materials
